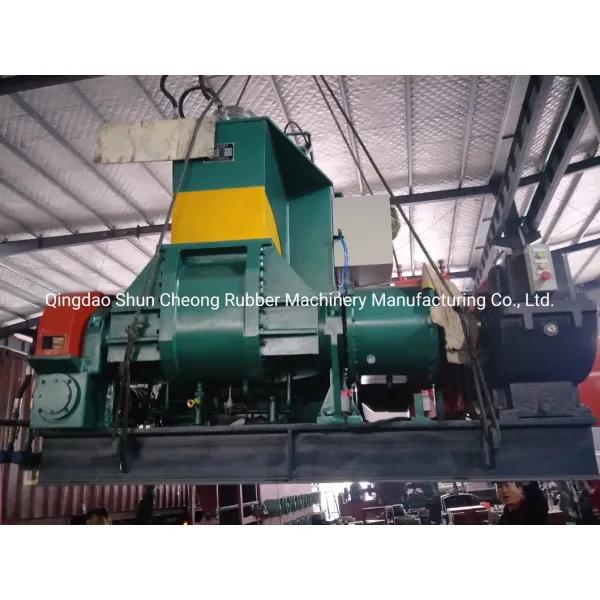

Control Dispersion Kneader with Chrome-Plated Mixing Chamber for Rubber Processing

condition : new

customized : customized

Brand Name : SFC

Model Number : X(S)N-75

Certification : CE, ISO

Place of Origin : Qingdao, China

MOQ : 1 set

Price : US$10,000.00-15,000.00

Payment Terms : T/T,L/C

Supply Ability : 60set/Month

Delivery Time : 25-35 days

Packaging Details : Safety Wood or Plywood Crates Packing

Contact Now

Dispersion Kneader for Rubber and Reclaim Rubber Sheet
Basic Information
Model: 75L
Certification: CCC, CE, ISO, ISO9001:2008
Voltage: 380V
Transport Package: Standard Export Packing
Specification: CE/SGS/ISO9001:2008
Trademark: SFC
Origin: Qingdao, China
HS Code: 84778000
Production Capacity: 100 sets/Year
Technical Specifications
Item 3L 5L 10L 20L 25L 35L 55L 75L 110L 150L 200L
Total Volume of Mixing Chamber (L) 8 15 25 45 55 75 125 170 250 325 440
Working Volume of Mixing Chamber (L) 3 5 10 20 25 35 55 75 110 150 200
Driving Motor Power (KW) 5.5 11 22 37 37 55 75 110 185 220 280
Tilting Motor Power (KW) 0.55 1.1 1.1 1.5 1.5 2.2 3 4 5.5 11 11
Tilting Angle (°) 140 140 140 140 140 140 140 140 140 135 135
Rotational Speed of the Rotor (Front/Rear) (RPM) 32/24.5 32/23.5 32/25 32/27 32/27 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5
Pressure of Compressed Air (MPa) 0.5~0.8 0.6~0.8 0.5~0.8 0.6~0.8 0.6~0.8 0.5~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
Capacity of Compressed Air (m³/min) ≥0.3 ≥0.5 ≥0.5 ≥0.7 ≥0.7 ≥0.9 ≥1.0 ≥1.0 ≥1.5 ≥2.0 ≥4.0
Pressure of Cooling Water (Rubber Mixing) (MPa) 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4
Pressure of Heating Steam (Plastic Mixing) (MPa) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Control Dispersion Kneader with Chrome-Plated Mixing Chamber for Rubber Processing Control Dispersion Kneader with Chrome-Plated Mixing Chamber for Rubber Processing
Key Features & Components
  • Mixing Chamber: High-quality steel plate welded construction with jacket structure for cooling/heating. Inner face chrome-plated for durability.
  • Thermal Resistance: Plug-in thermal resistance with PLC for precise temperature detection and control during mixing.
  • Rotor: Banbury-style rotor with cooling/heating channels. Welded wear-resistant carbide with hard chrome plating for extended service life.
  • Heating and Cooling Systems: Integrated piping system for circulating cooling water or heating steam through rotor wing, mixing chamber, and ram room.
  • Dust Stop: Three-defense-line floating oil film sealing system for complete powder leakage prevention.
  • Main Transmission Systems: Includes main motor, reducer, speed ratio gear box with opposite differential rotation speed rotors.
  • Gas Control System: PLC-controlled two-way cylinder for ram operation with automatic overload protection.
  • Electronic Control System: Imported PLC devices and electrical components for maximum reliability and performance.
Control Dispersion Kneader with Chrome-Plated Mixing Chamber for Rubber Processing Control Dispersion Kneader with Chrome-Plated Mixing Chamber for Rubber Processing
