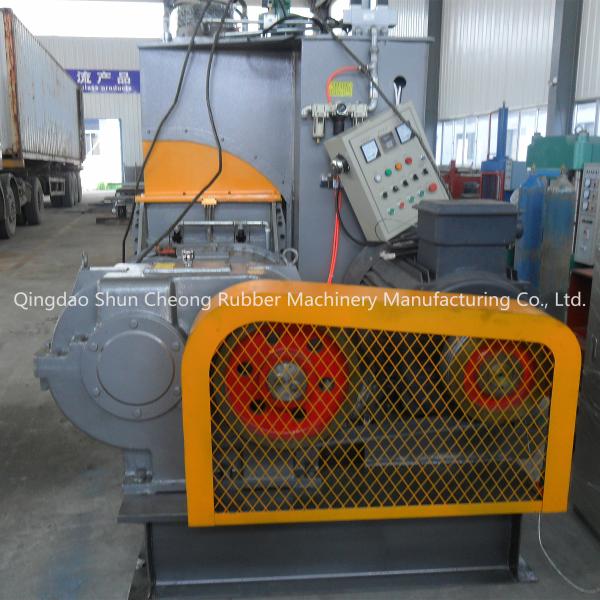

X(S)-110X30 Rubber Mixer Dispersion Kneader / Rubber Kneader Machine
Product introduction
1.This machine is suitable for mixing and internal mixing of plastics, rubber, plastics and other chemical industrial raw materials. It can mix all kinds of liquid, solid and powder raw materials together, which is convenient for rubber mixing in the next process.
2.Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
3.The Kneader has a common bed plate for all parts and not require foundation.
4.Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
product parameters
|
Item
|
Unit
|
X(S)N-3
|
X(S)N-20
|
X(S)N-35
|
X(S)N-55
|
X(S)N-75
|
X(S)N-110
|
X(S)N-150
|
X(S)N-200
|
|
Working Volume of Mixing Chamber
|
L
|
3
|
20
|
35
|
55
|
75
|
110
|
150
|
200
|
|
Driving Motor Power
|
KW
|
5.5
|
37
|
55
|
75
|
110
|
185
|
220
|
280
|
|
Titling Angel
|
°
|
140
|
140
|
140
|
140
|
140
|
140
|
11
|
11
|
|
Pressure of Compressed Air
|
MPa
|
0.5-0.8
|
0.6-0.8
|
0.5-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Compressed Air Flow Rate
|
m³/min
|
≥0.3
|
≥0.7
|
≥0.9
|
≥1.0
|
≥1.0
|
≥1.5
|
≥2.0
|
≥4.0
|
|
Pressure of Cooling Water
|
MPa
|
0.2~0.4
|
0.2~0.4
|
0.3~0.4
|
0.3~0.4
|
0.3~0.4
|
0.3~0.4
|
0.3~0.4
|
0.3~0.4
|
|
Pressure of Heating Steam
|
MPa
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
0.5~0.8
|
|
Dimensions(LxWxH)
|
mm
|
2000x906
x2200
|
2630x1520
x2560
|
3200x1900
x2950
|
3230x1927
x2958
|
3325x2615
x3105
|
4075x2712
x3580
|
4250x2750
x4106
|
4250x3400
x4200
|
