Advanced Control Systems 2 Roll Rubber Mixing Machine
16" Open Rubber Mixing Mill with Customization Options
Product Overview
This advanced rubber mixing machine is engineered for precise blending and mixing of rubber compounds, including raw rubber, additives, fillers, and other ingredients. The material is fed between two rotating rolls where shearing and compression actions ensure uniform dispersion and distribution of all components throughout the mixture.
Key Features
- Variable Roll Speeds: Independent control of roll speeds enables precise adjustment of shear rate and residence time for optimal blending efficiency across various rubber compounds
- Temperature Control: Heated or cooled rolls maintain rubber material at desired temperature ranges, enhancing malleability and preventing heat buildup during extended mixing sessions
- Customization Options: Available customization includes roll diameter, surface texture, roll material, pneumatic/hydraulic adjustments, automated batch feeding, and discharge mechanisms
Machine Construction
Main components include roller, frame, bottom plate, distance adjustment device, transmission system, roller temperature adjustment device, safety device, and lubrication system.
Construction Features
Rollers are manufactured from alloy chilled cast iron with high hardness, exceptional wear resistance, and durability. The roller inner cavity accommodates steam, cooling water, or heat transfer oil to regulate working temperature according to process requirements. Track gauge adjustment is available in manual or electric configurations, with lubrication provided via dry oil or thin oil systems.

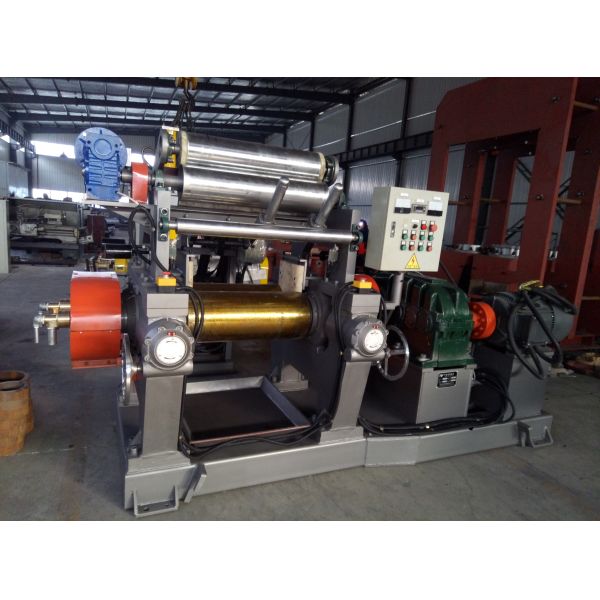

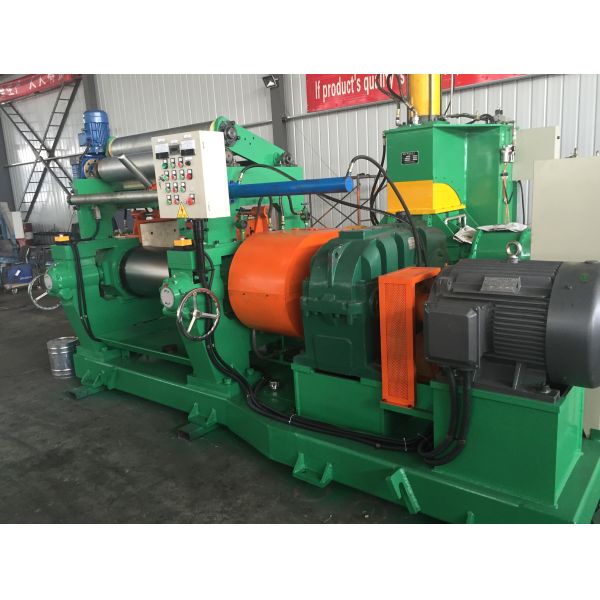

Product Gallery
Technical Specifications
| Model |
XK-400 |
XK-450 |
XK-560 |
XK-610 |
XK-660 |
| Working diameter of rollers (mm) |
Ф400 |
Ф450 |
Ф560/Ф510 |
Ф610 |
Ф660 |
| Working length of rollers |
1000 |
1200 |
1530/1830 |
2000 |
2130 |
| Linear speed of front and rear roller |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.29 |
1:1.24 |
| Capacity per batch |
18~35 |
25~50 |
50~100 |
90~120 |
130~165 |
| Motor power (kw) |
37 |
55 |
90/110 |
160 |
185/250 |
| Overall size L*W*H |
4250*1850*1870 |
5200*1800*2000 |
6500*2300*2640 |
7500*2500*2640 |
7600*3400*2500 |
| Weight (kg) |
7000 |
10000 |
20000 |
28000 |
47000 |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd, located in Kangting Road No. 1, West Coast New District, Qingdao, China, specializes in high-technology rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Industry Applications
Our products serve tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling industries.
Product Range
Main equipment includes Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, and Rubber Strainer.
Global Reach
Products are exported to over 50 countries including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent customer praise and ongoing cooperation.
Quality Commitment
Our Quality Assurance Promise:
- Every component undergoes strict quality inspection before storage
- All products complete overload trial running before shipment
- Comprehensive free technical support for all products
- 3-year warranty on main parts, 1-year warranty on wearing parts
- Immediate remote support with on-site engineering assistance when needed
